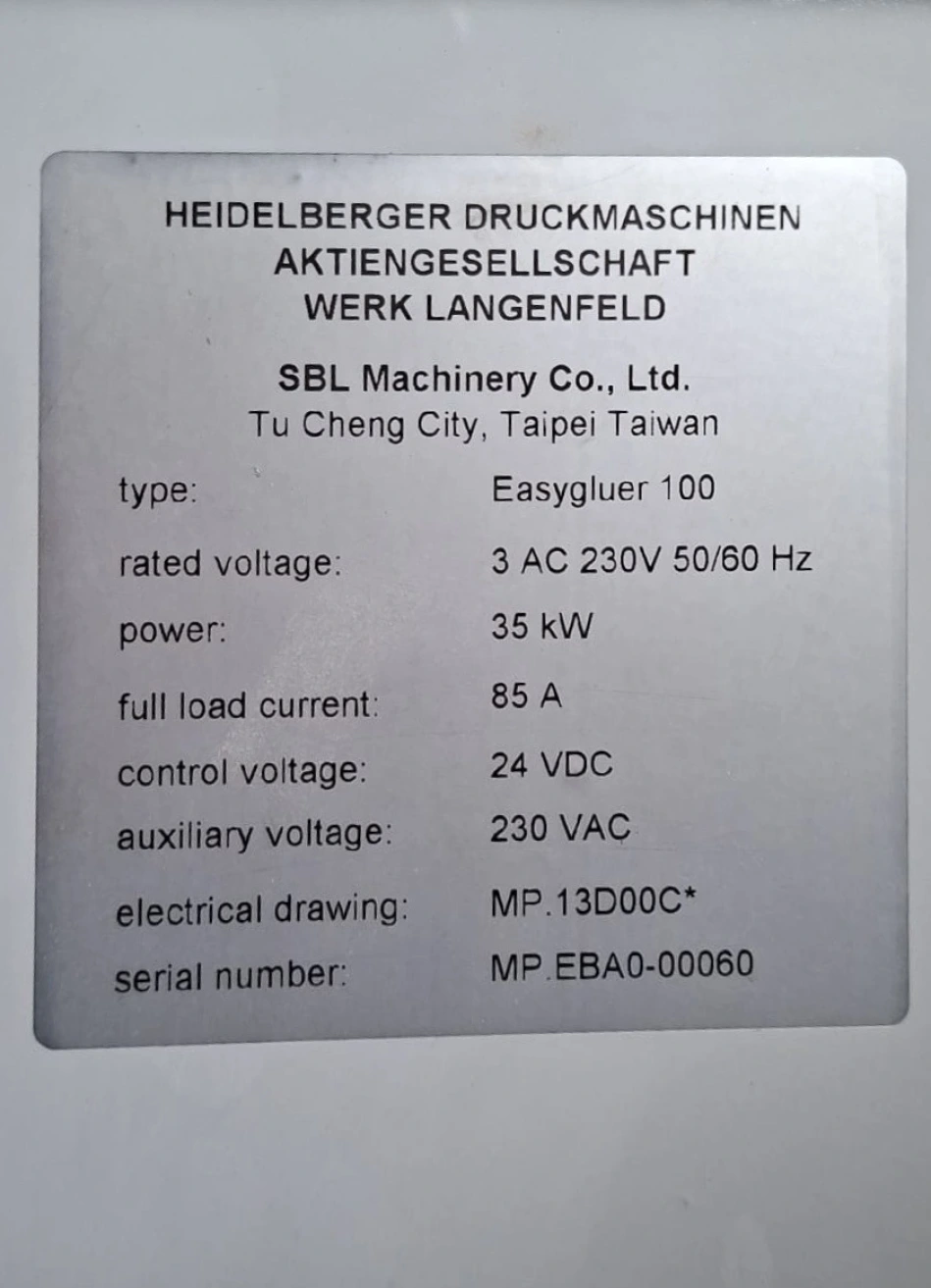

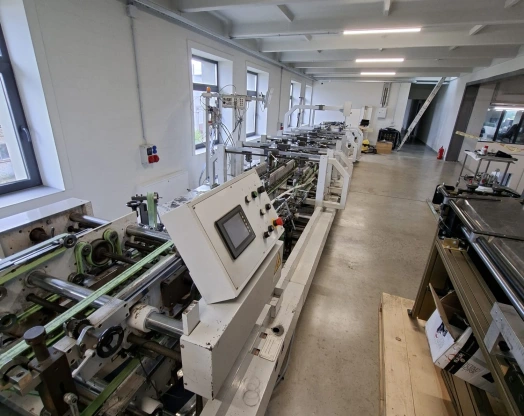

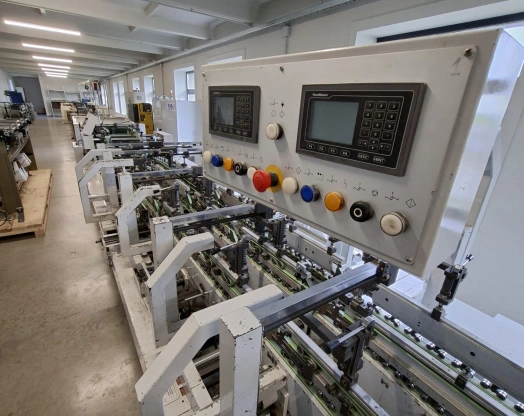

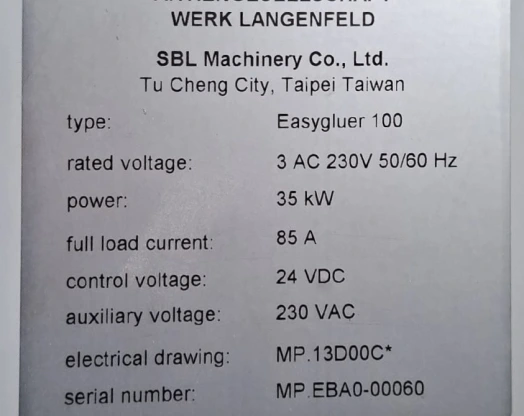

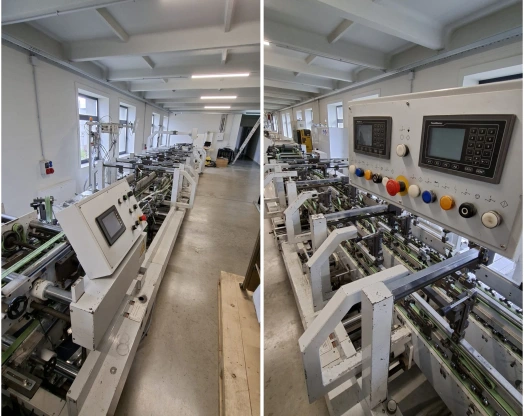

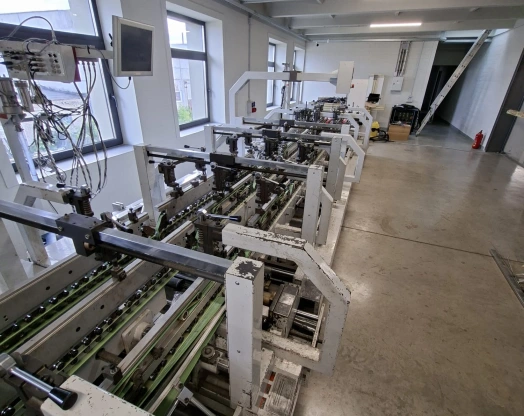

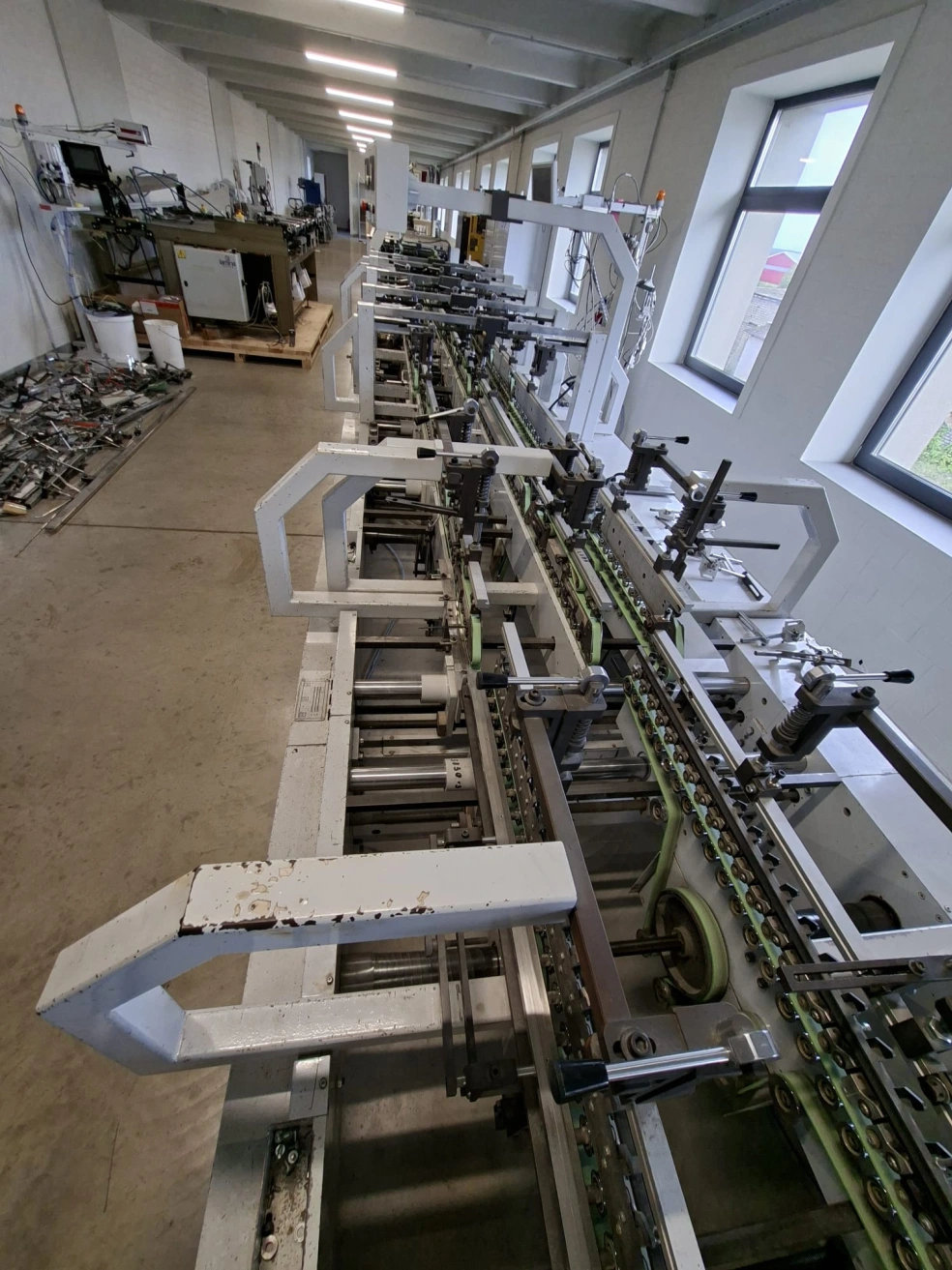

Heidelberg Easygluer 100 – Folder Gluer Machine
Ref.No:593

Year:
2011
Size:
100 x 70cm
Price:
On request
Download PDF
Contact us
Heidelberg Easygluer 100 – Folder Gluer Machine
Name*
Сompany title*
E-mail *
Phone
Message*:
* By submitting a request, you agree to our newsletter about new similar machines; this data will not be transferred to third parties.
Hide
Description

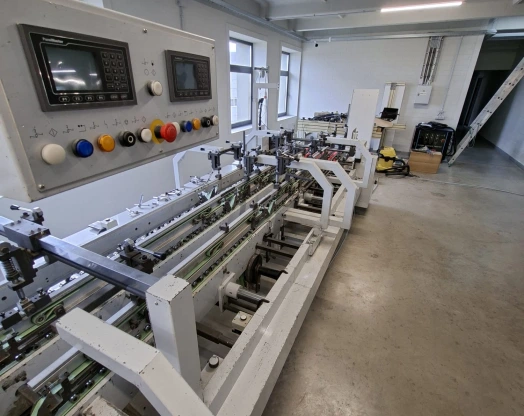

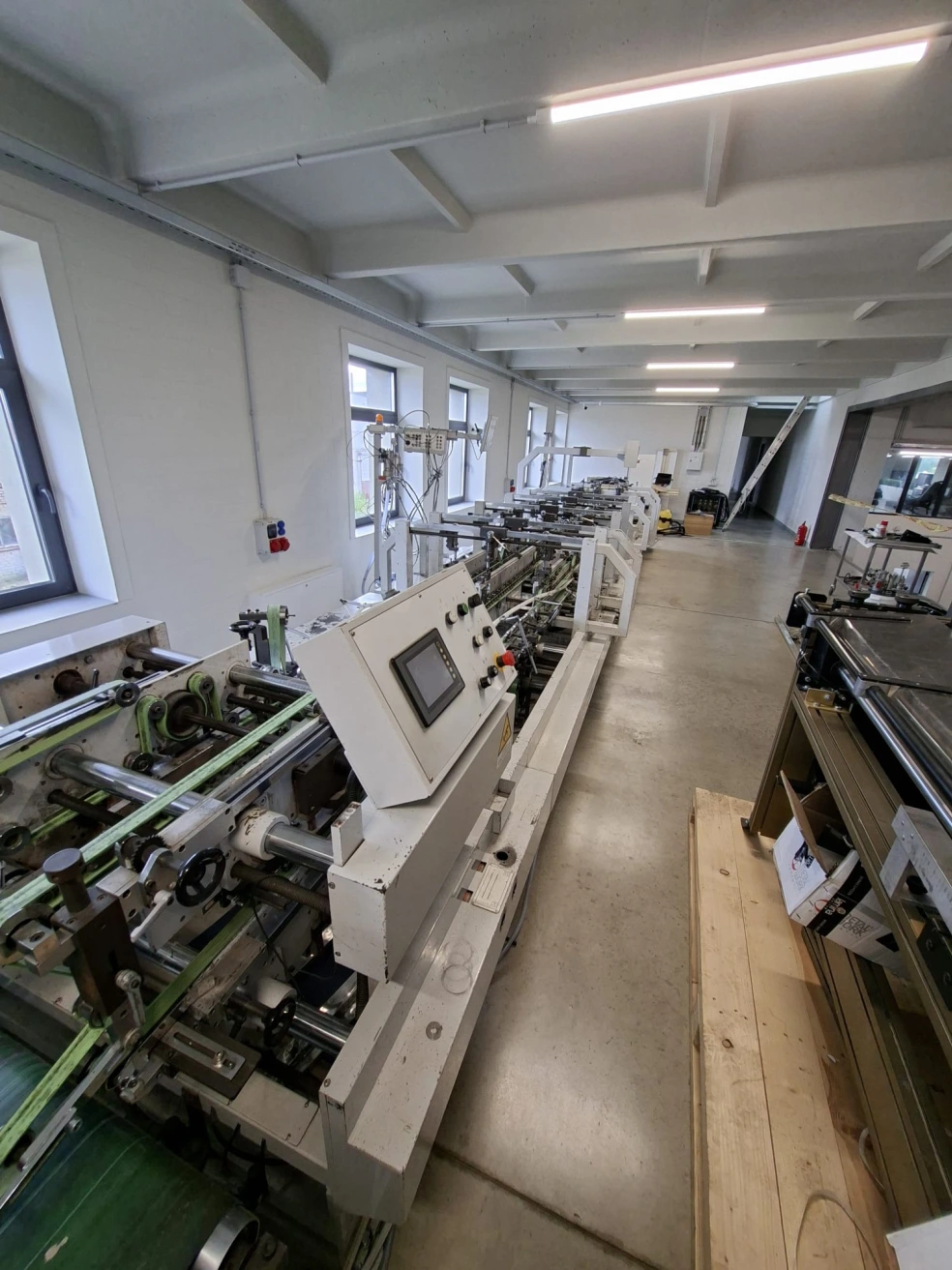

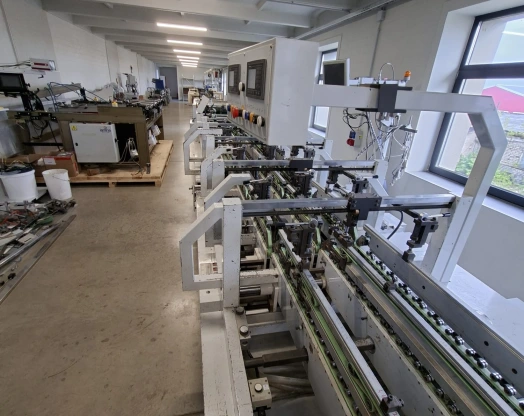

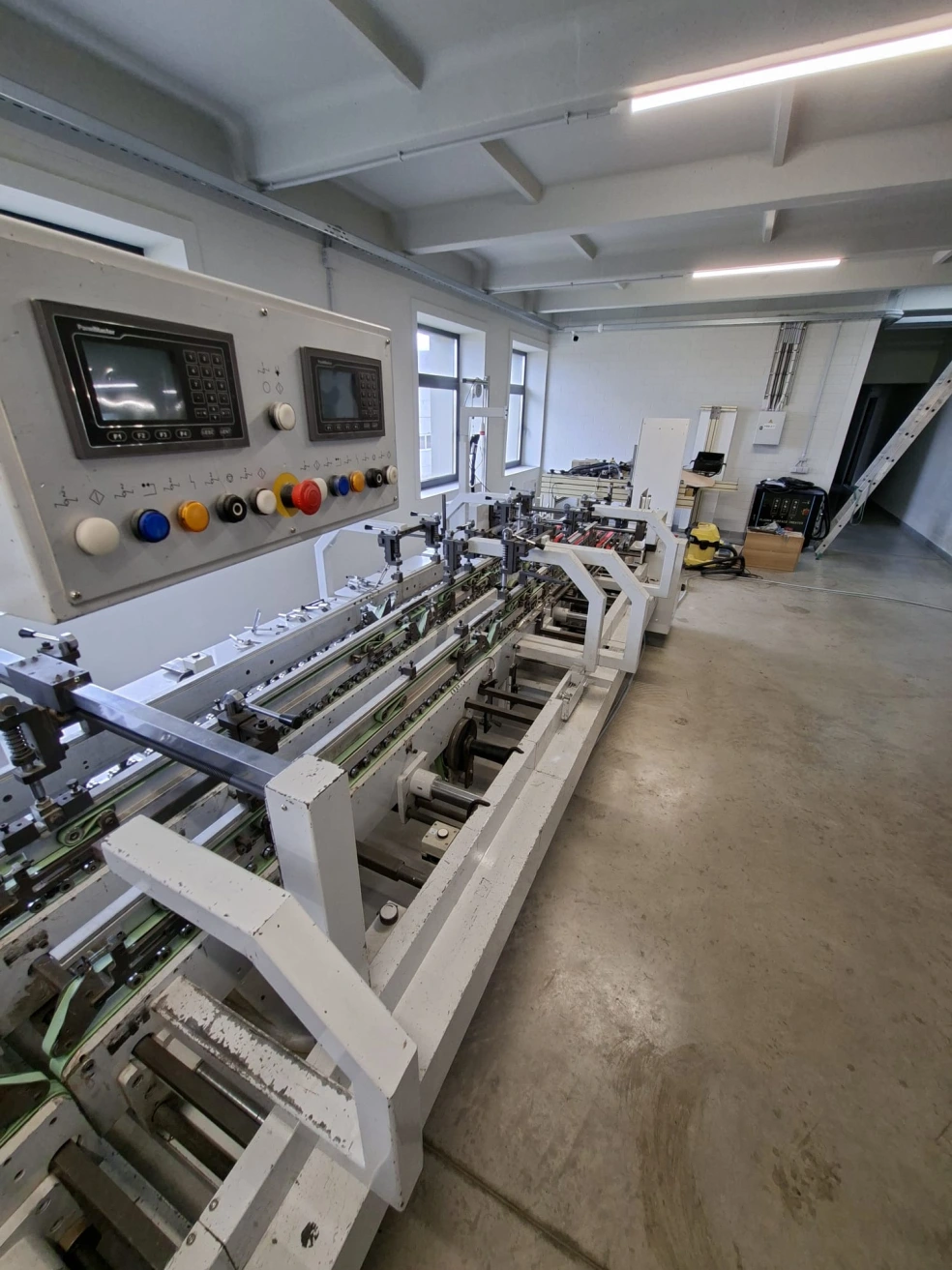

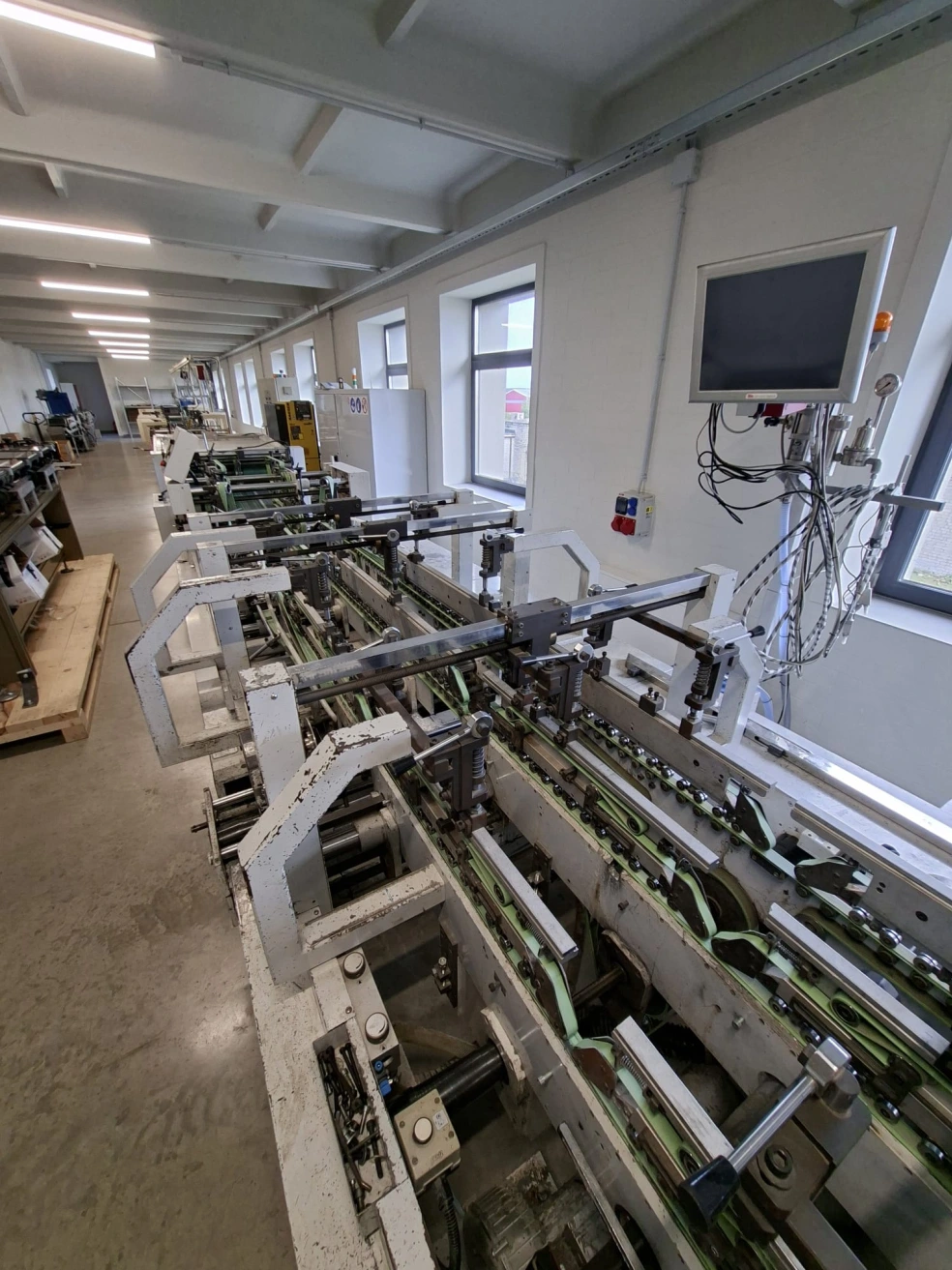

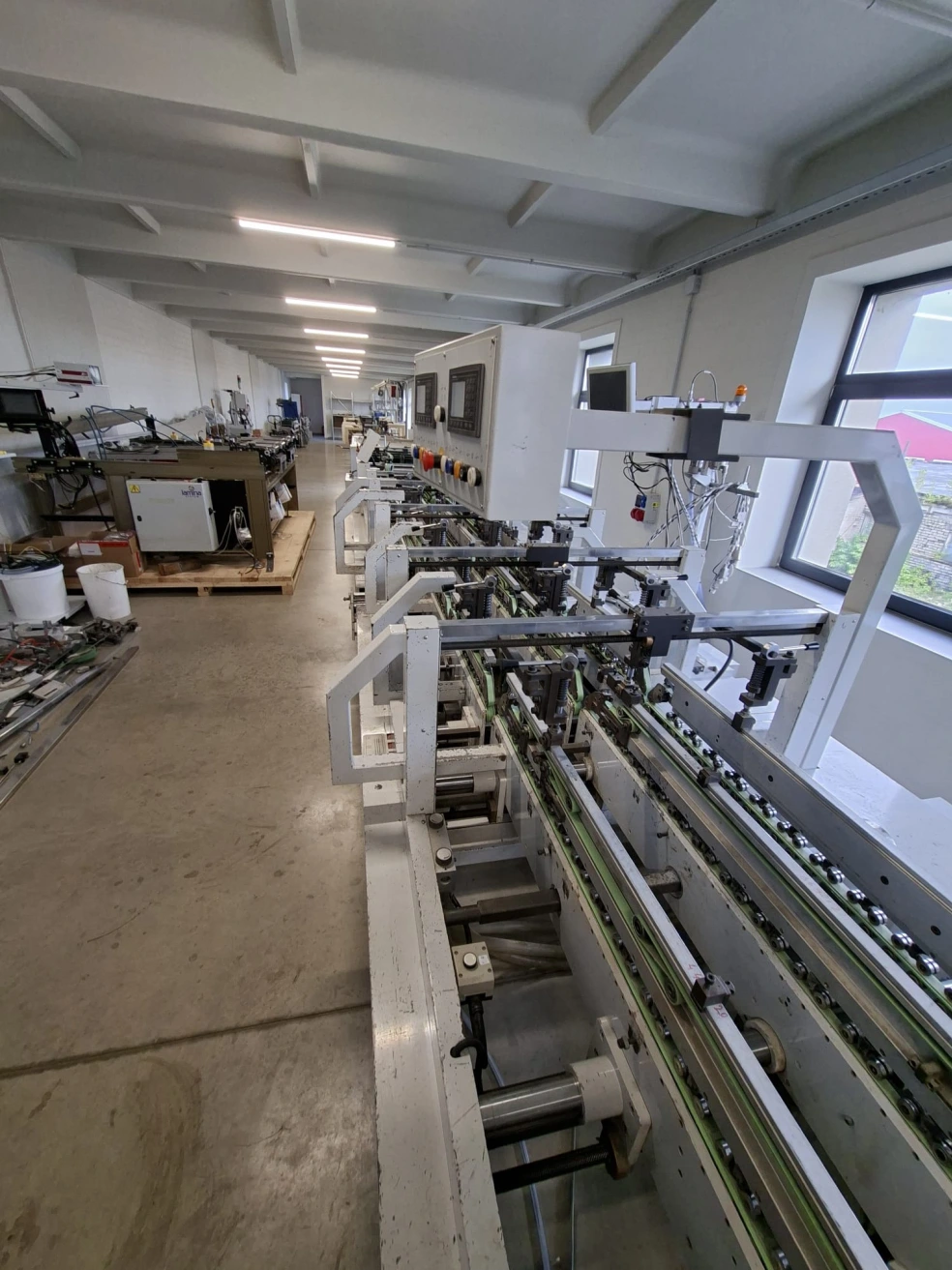

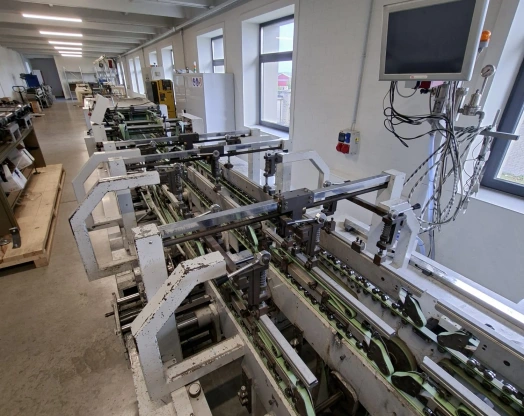

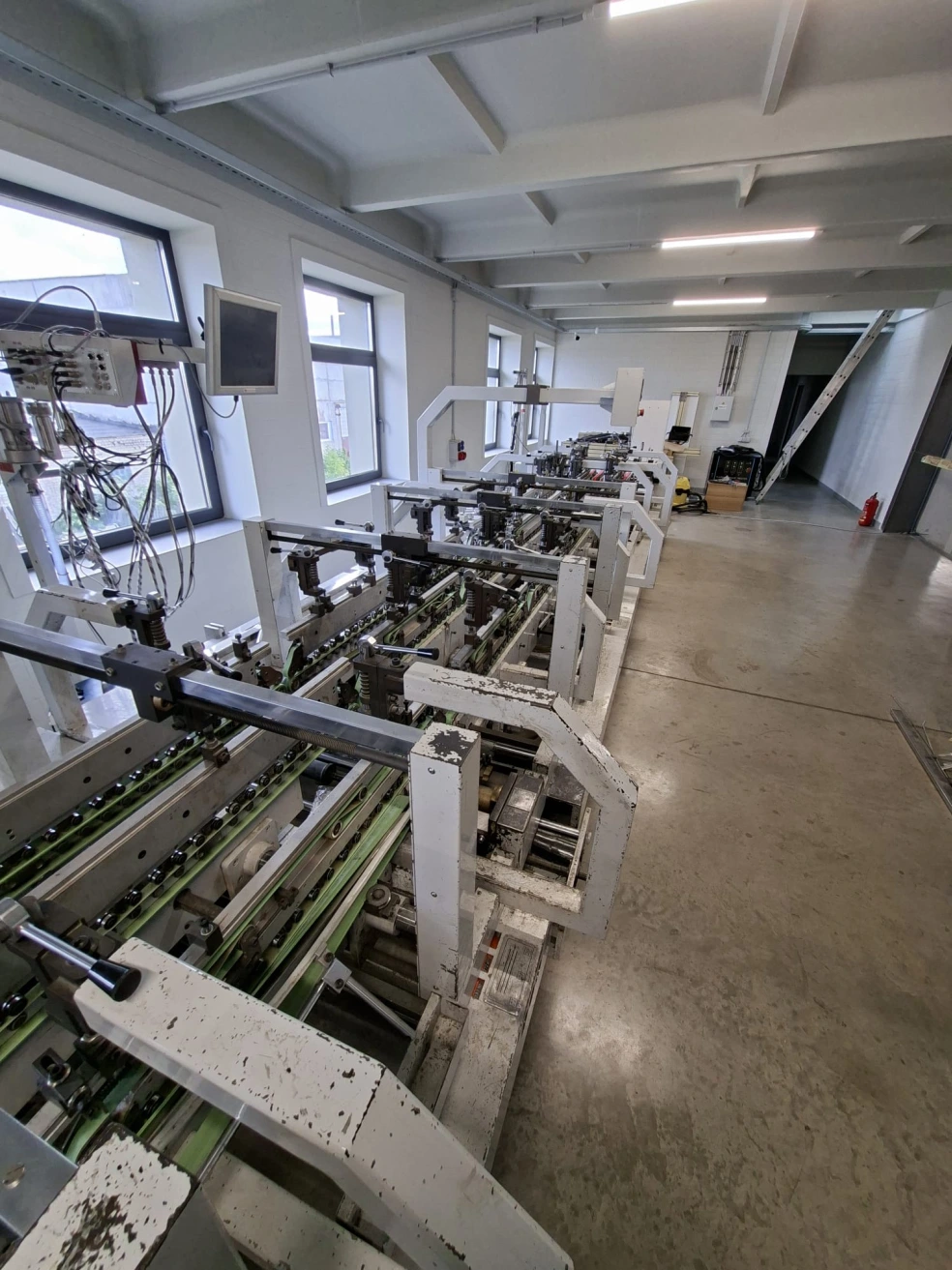

Heidelberg Easygluer 100 – Folder Gluer Machine
  • Year: 2011
  • Manufacturer: Heidelberg
  • Model: Easygluer 100
  • Type: Automatic Folder Gluer Machine
  • Gluer system Baumer HHS
  • Glue controller Xpect 8 Chanel
  • Glue guns PL-500 x 3 pcs
  • Glue pump KP6 Encoder set,
  • Glue line divider and ETC

  • The machine has undergone a complete overhaul:
  • new Japanese belts have been installed;
  • a new glue application system has been installed.

  • Description:
  • Maximum speed: 300 m/min
  • Maximum output: up to 50,000 cartons/hour
  • Maximum blank width: 1,000 mm
  • Minimum blank width: approx. 87–88 mm
  • Maximum blank length: 700 mm
  • Folding carton board: 200–600 gsm
  • Corrugated board: N-, F- and E-flute
  • Carton types: Straight-line, lock-bottom and folding cartons with lids
  • Optional carton types: 4-corner and 6-corner cartons (included)

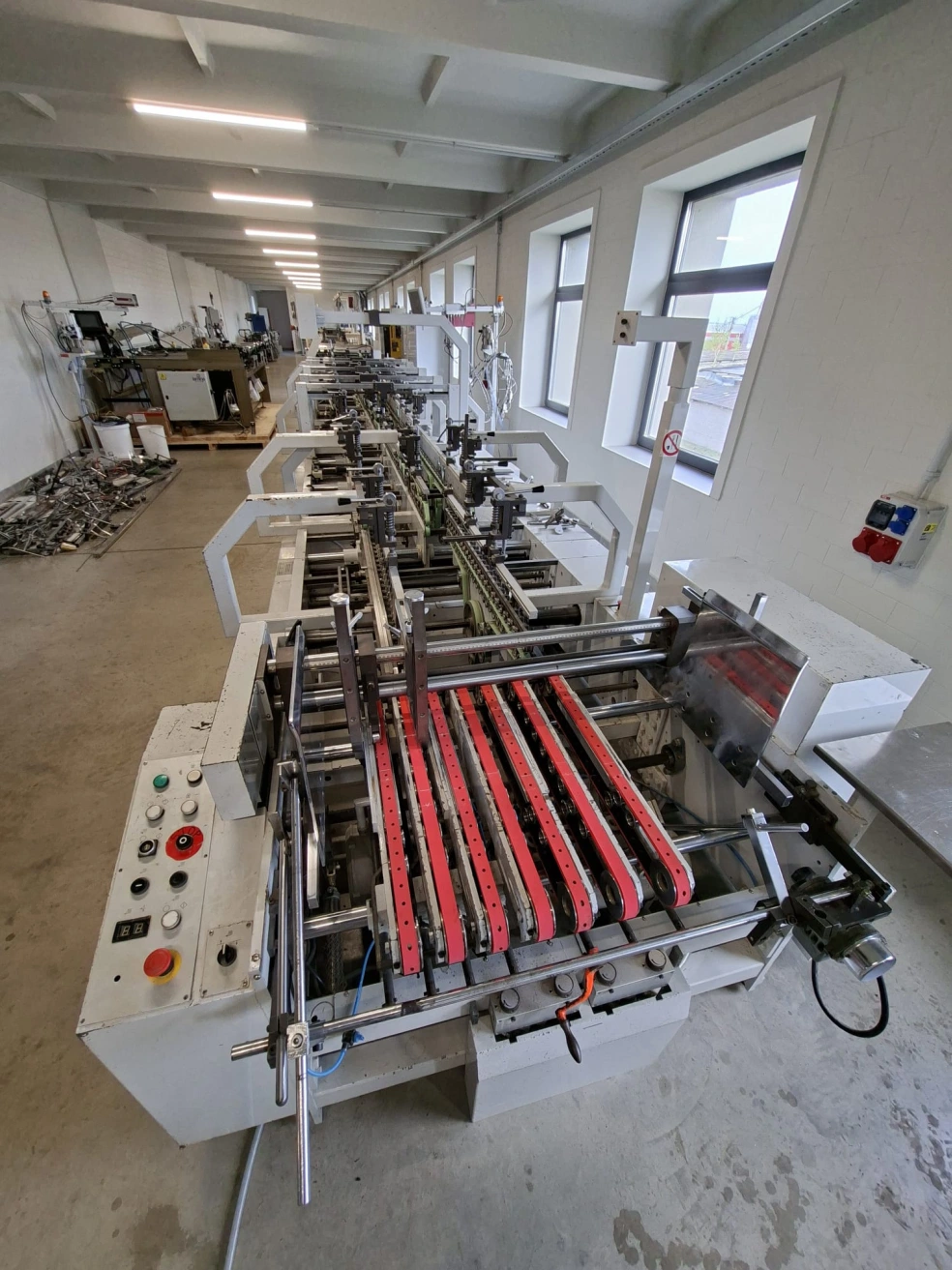

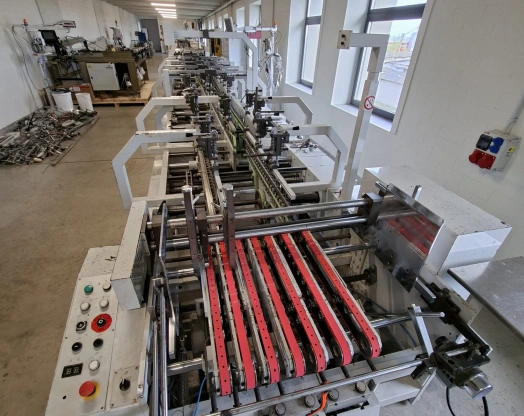

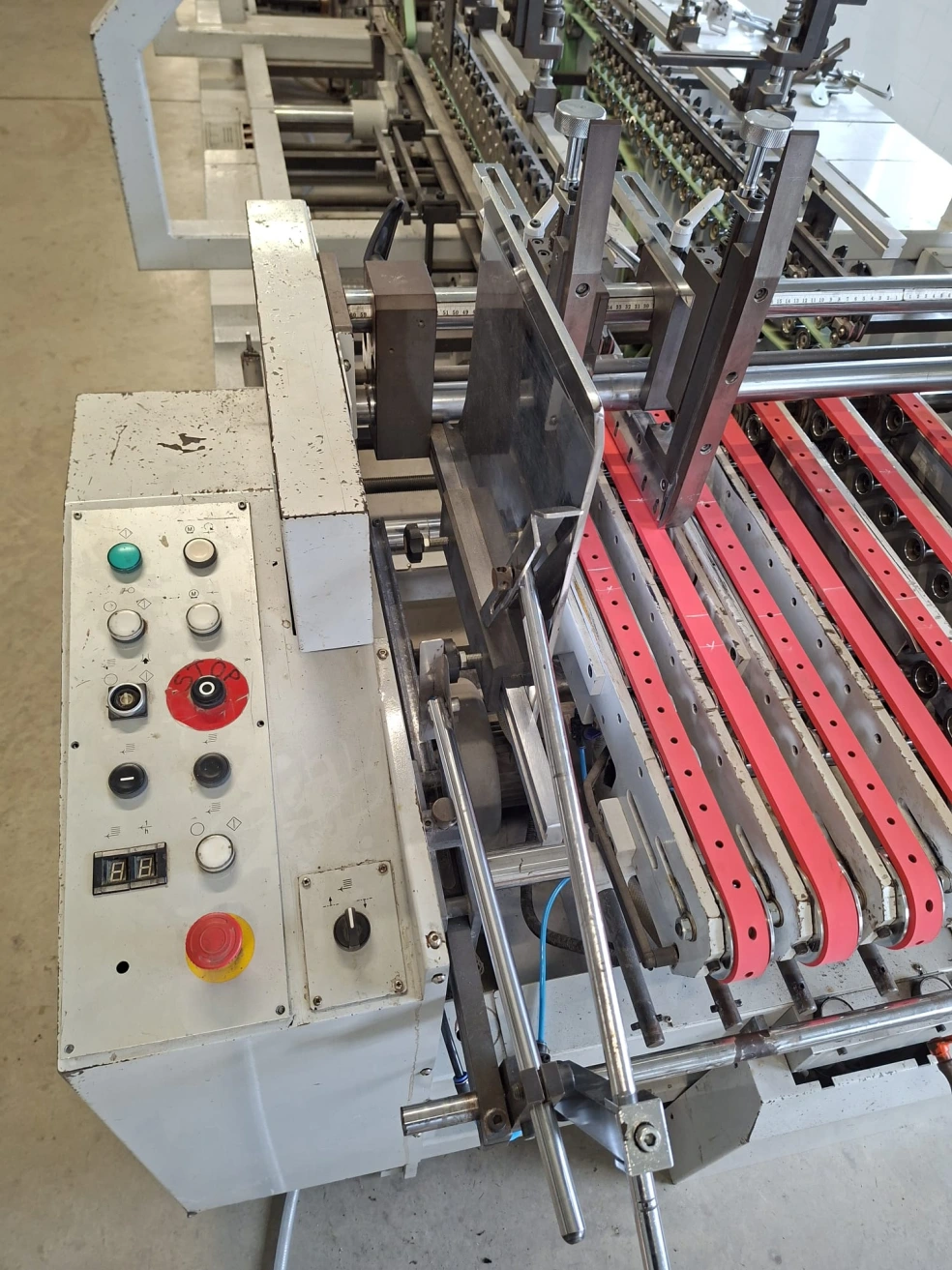

  • Feeder: vacuum feeder with pile vibrator
  • Glue system: Automatic glue application system

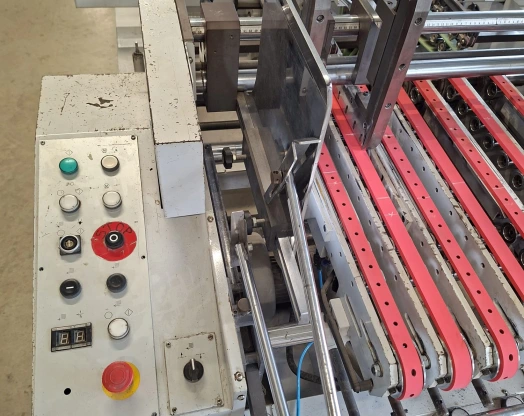

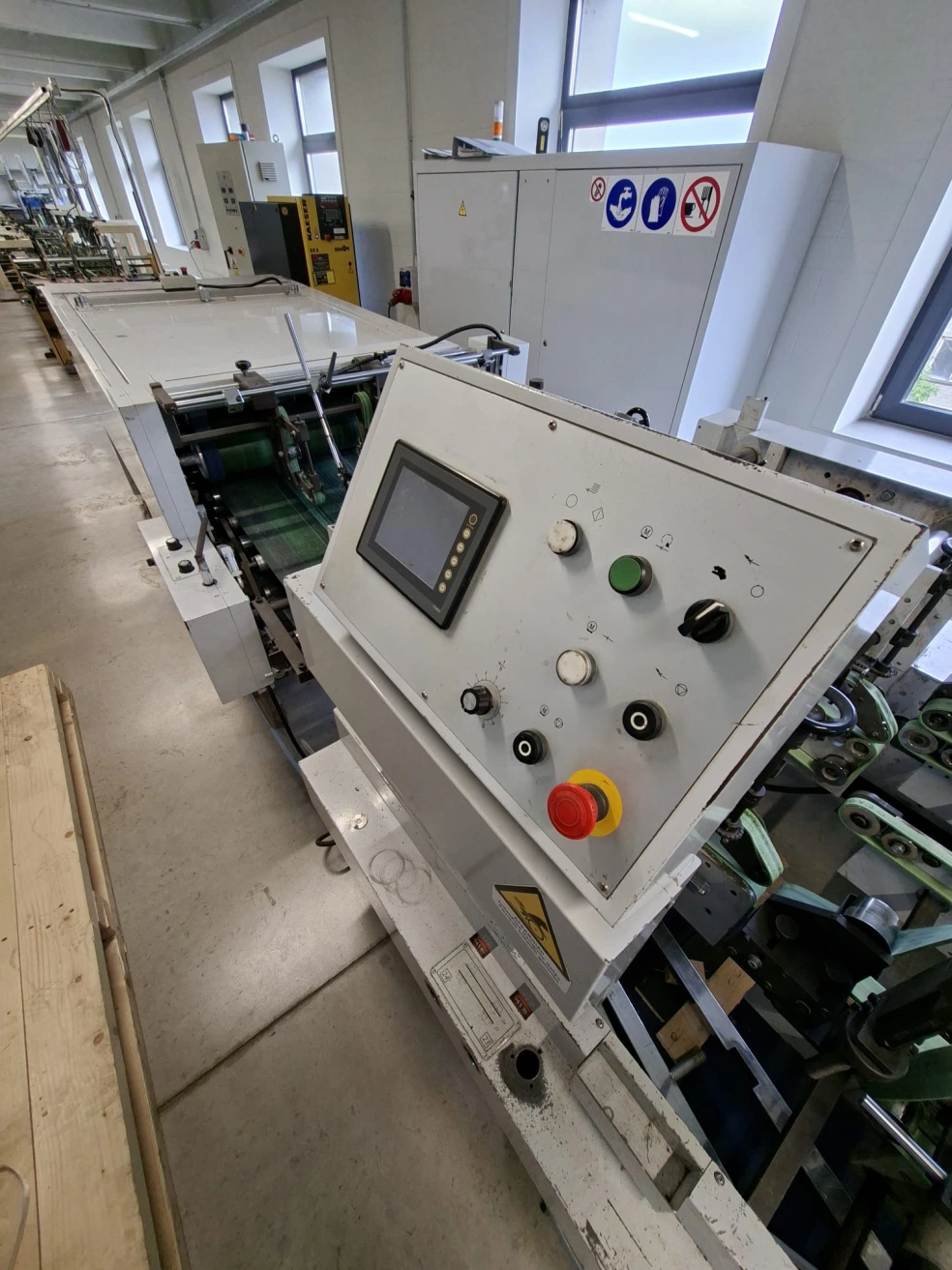

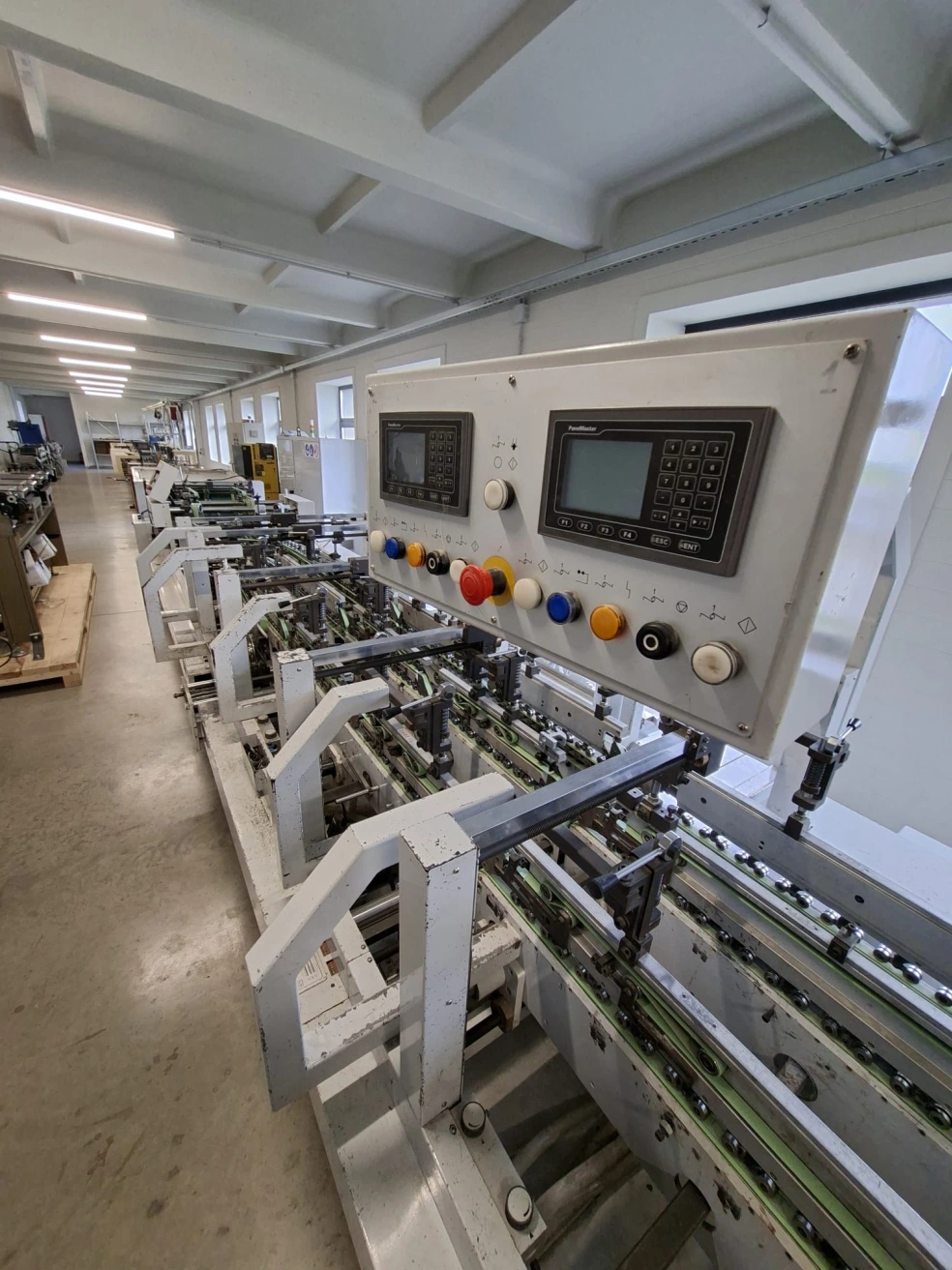

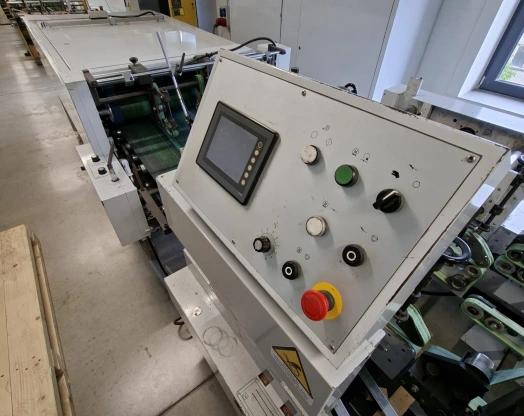

  • Control: PLC control with touchscreen

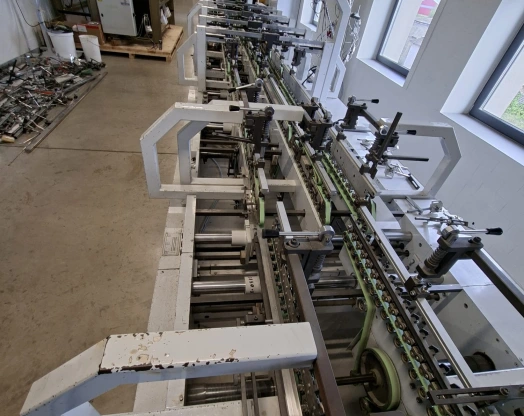

  • Central transport: Upper and lower central transport system
  • Folding: Precise and gentle folding for large blanks
  • Special applications: Small cartons, CD/DVD covers and special cartons
  • Production: Up to 30,000 4/6-corner cartons/hour, depending on configuration
  • Heidelberg specifies 300 m/min, up to 50,000 lock-bottom cartons/hour, 200–600 gsm board and N/F/E-flute corrugated board for the Easygluer 100. The machine can also be configured for 4- and 6-corner cartons.
