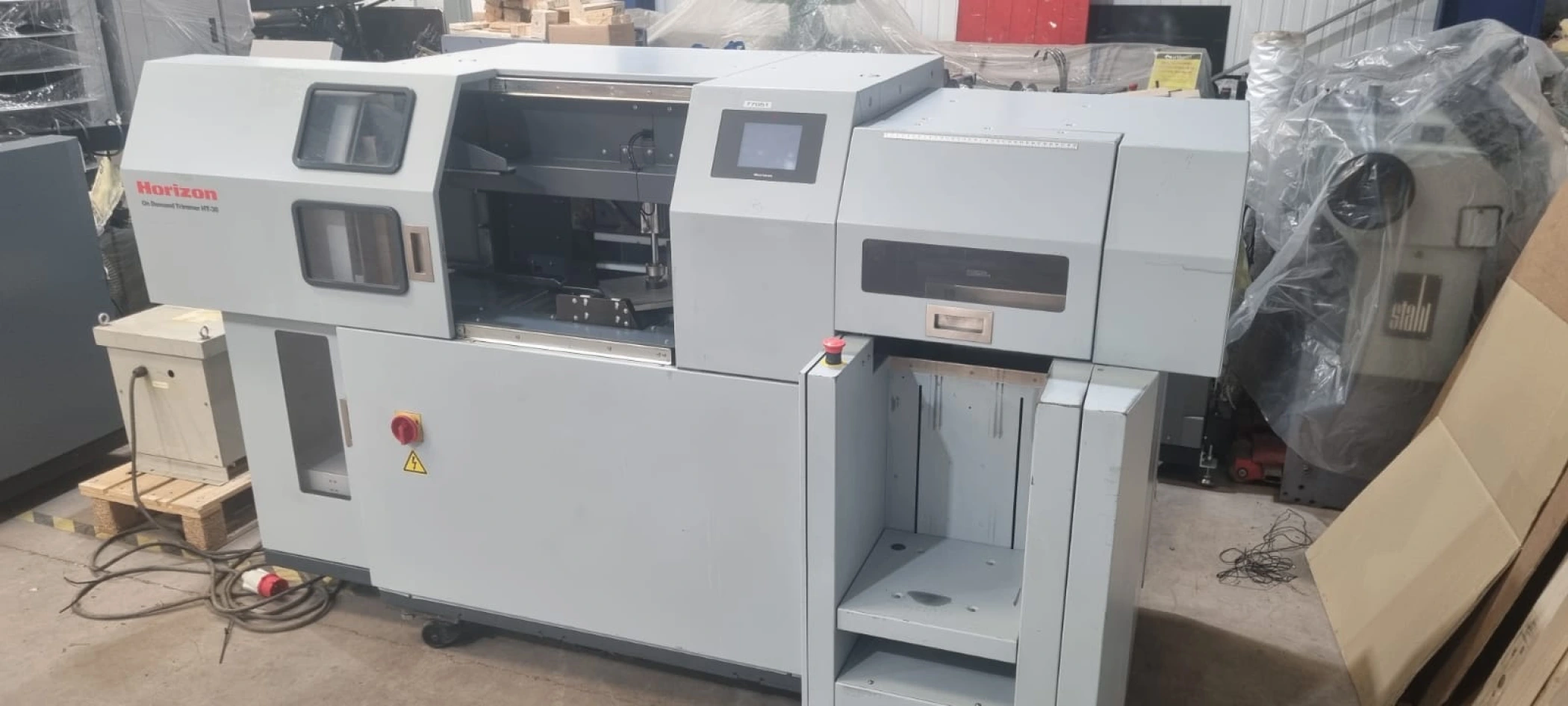

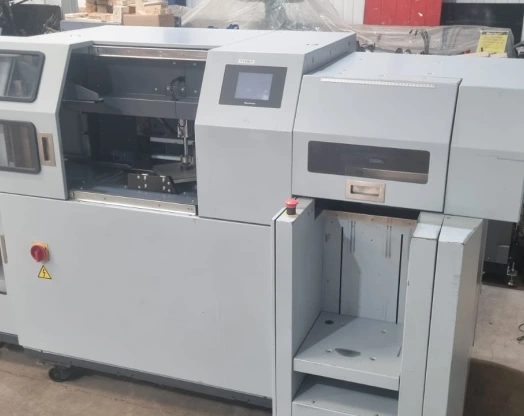

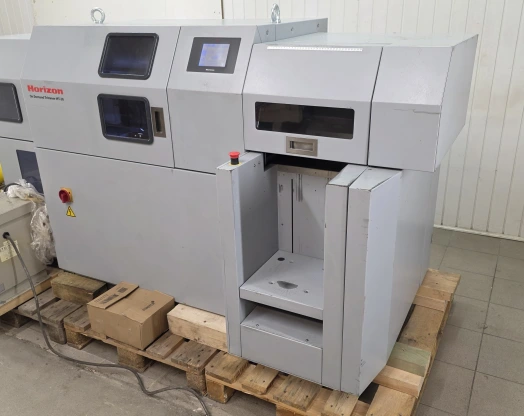

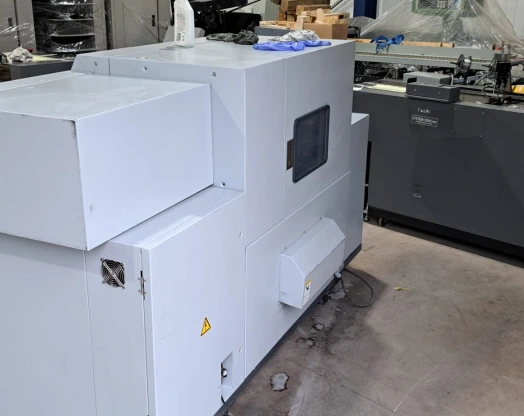

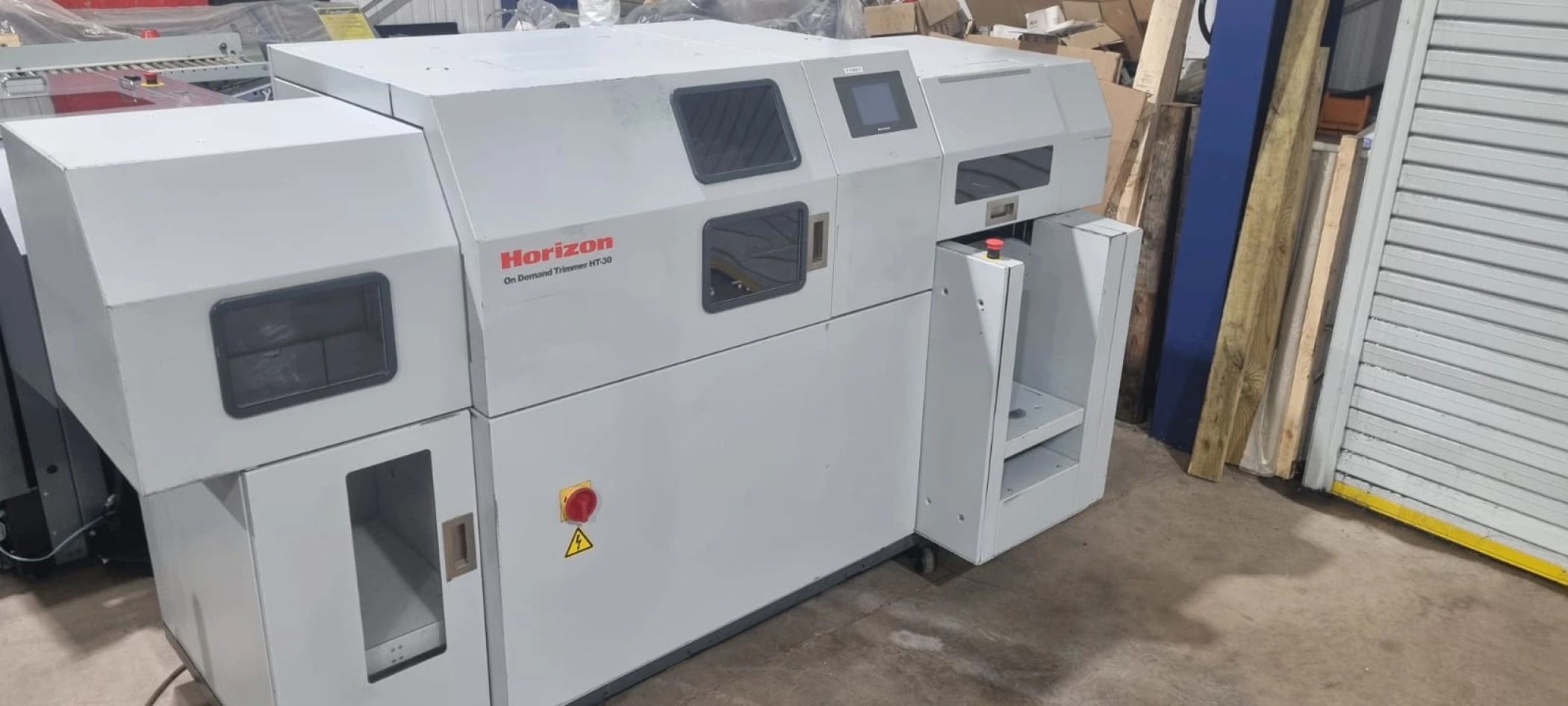

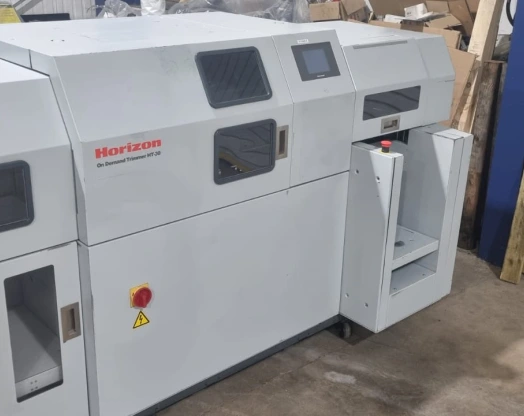

Horizon HT-30 three knife trimmer

Ref.No:518

Horizon HT-30 three knife trimmer
technology: touch & work
Year: 2010

• Description:
• Untrimmed Book Size:
• Spine Length × Fore-edge Length
• Max. 320x235 mm / 12.600” x 9.255”
• At maximum by using the optional cutting module for landscape size
• Max. 320x233.8 mm / 12.600” x 9.200”
• at maximum by using the optional cutting module for A6 size
• Min. 204x136 mm / 7.870” x 5.350”
• Min. 152x136 mm / 5.985” x 5.350”
• At minimum by using the optional cutting module
• Min. 152x107 mm / 5.985” x 4.210”
• At minimum by using the optional cutting module for A6 size
• Finished Book Size:
• Spine Length × Fore-edge Length
• Max. 305x230 mm / 12.010” x 9.055”
• Max. 305x300 mm / 12.010” x 11.810”
• At maximum by using the optional cutting module for landscape size
• Max. 305x133.9 mm / 12.010” x 5.275”
• At maximum by using the optional cutting module for A6 size
• Min. 200x134 mm / 7.870” x 5.280”
• Min. 148x134 mm / 5.830” x 5.280”
• At minimum by using the optional cutting module
• Min. 148x105 mm / 5.830” x 4.130”
• At minimum by using the optional cutting module for A6 size
• Landscape book size is A4, B5, A5, 8.5” x 11”, 7” x 8.5”
• (by using the optional cutting module for each
• landscape size)
• Trim Width Max. 99.9 mm / 3.930”
• Min. 2.0 mm / 0.080”
• Trim Height Max. 51 mm / 2.0”
• Book Pile Height
• Clamp System and Pressure: Hydraulically Operated
• Automatic Settings : 4kN / 5.5kN / 8kN 3 Steps Selectable
• Manual Settings : 1.5kN / 3kN / 5kN / 6.5kN / 8kN 5 Steps Selectable
• Production Speed
• Max. 440 books per hour (Book Thickness 25 mm, 2 piled books)
• Max. 520 books per hour (Book Thickness 10 mm, 5 piled books)
• Voltage / Frequency
• 3-phase 400 V, 50 / 60 Hz / 1,25 kw
• weight: 1.020kg
• Machine Dimensions: W 2350 x D 1160 x H 1370 mm / W92.6” x D45.7” x H54.0”
