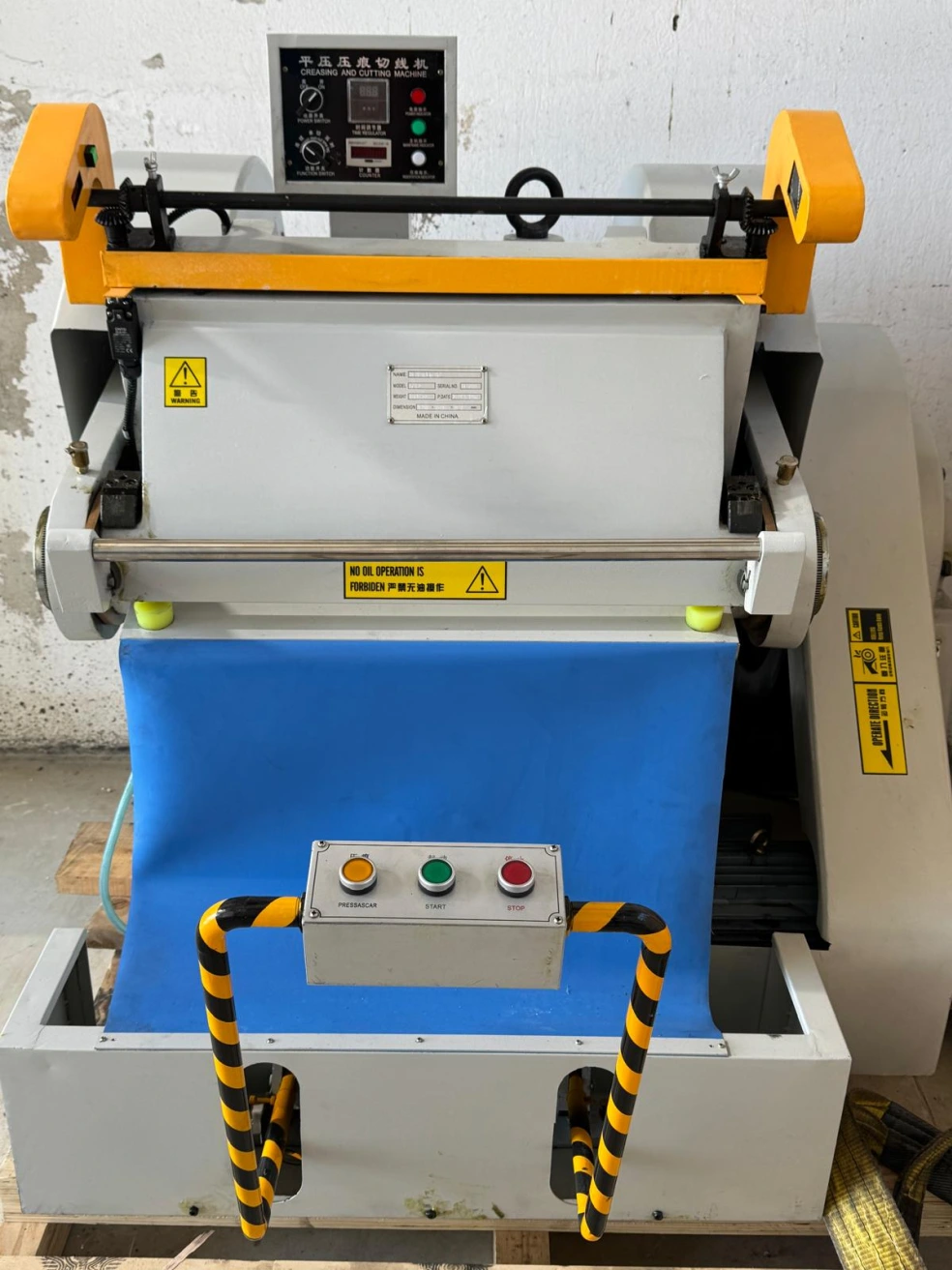

ML-750 die-cutting and creasing
cutting format B2.

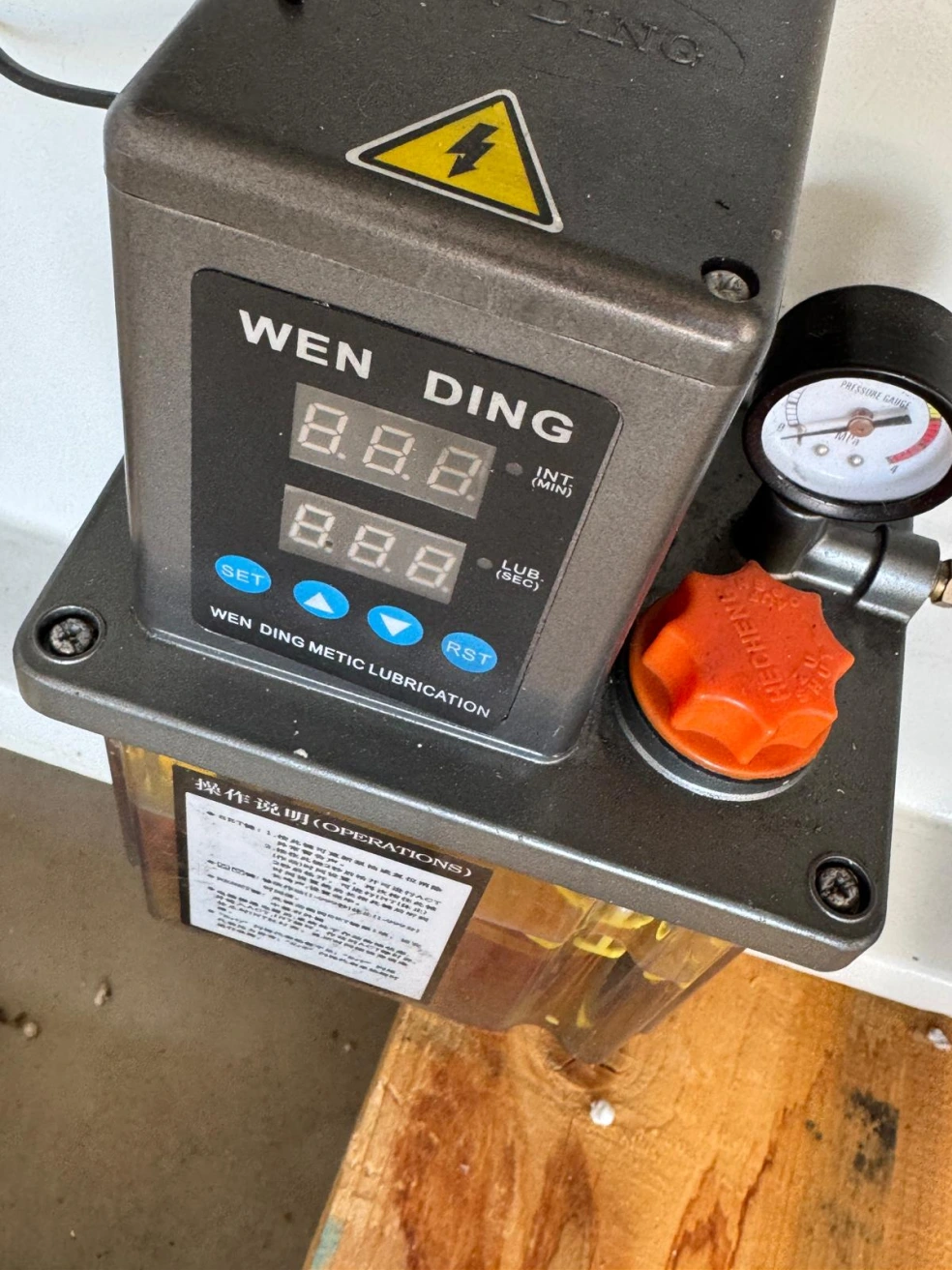

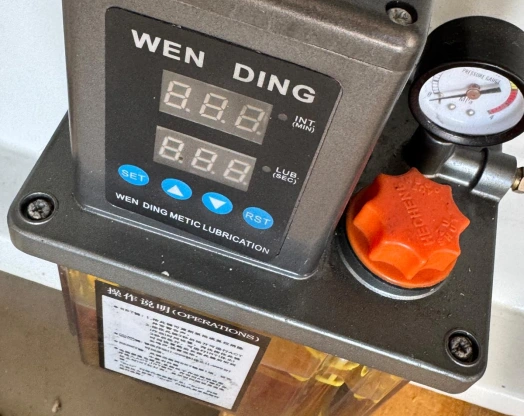

ML-750 is equipped with an automatic lubrication system.
Semi-automatic crucible die-cutting presses ML-750 are designed for die-cutting, perforating, decorating, and embossing of box blanks made of paper, cardboard, corrugated cardboard, microcorrugated cardboard, leather, plastic, and other materials.

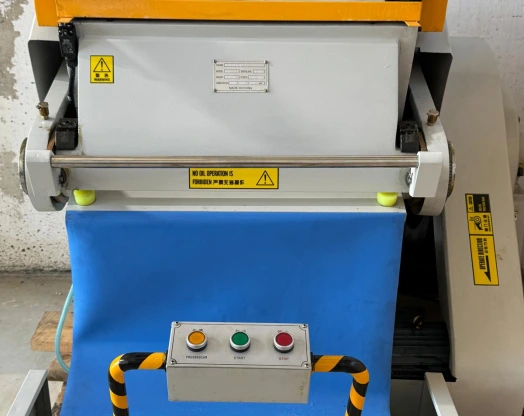

The press is also equipped with an infrared barrier safety sensor that blocks the machine if the operator's hand enters the danger zone.
Protective mechanisms with brake drums allow you to instantly stop the crucible in emergency situations and prevent injuries.
Technical specification:
Maximum sheet size: 750 x 520 mm
Working speed, sheet/min: 25
Speed, stroke/min: 25
Maximum length of the cutting contour: up to 20 m
Power: 2.2 kW
Voltage / Frequency: 380 V/50 Hz
Overall dimensions: 1450 x 1450 x 1600 mm
Weight: 2200
