POLAR 115 ED
Ref.No:576

Labels:
Sold
Year:
2002
Size:
115 x 115cm
Location:
Germany
Download PDF
Contact us
POLAR 115 ED
Name*
Сompany title*
E-mail *
Phone
Message*:
* By submitting a request, you agree to our newsletter about new similar machines; this data will not be transferred to third parties.
Hide
Description

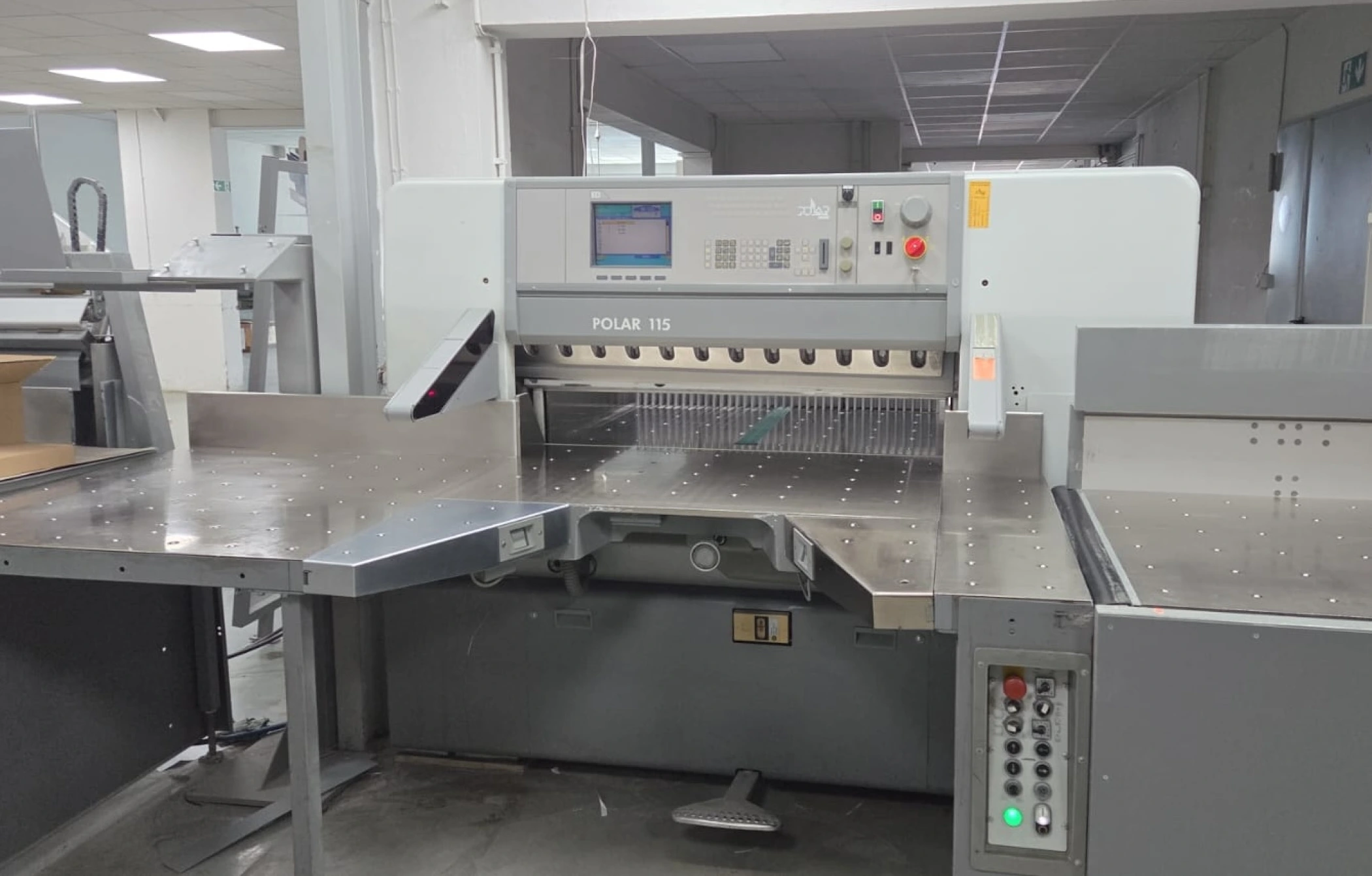

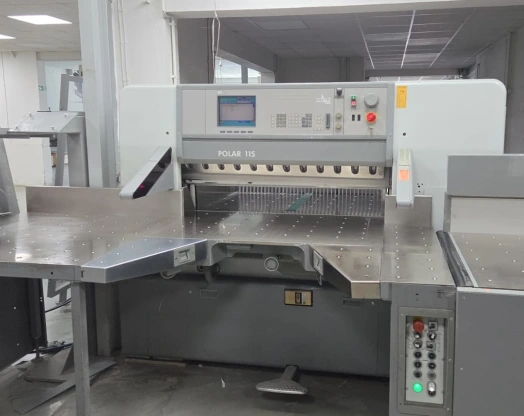

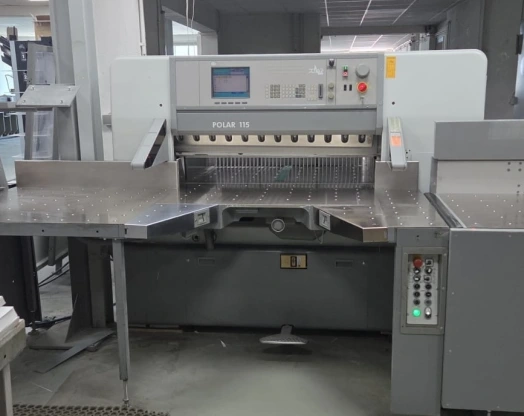

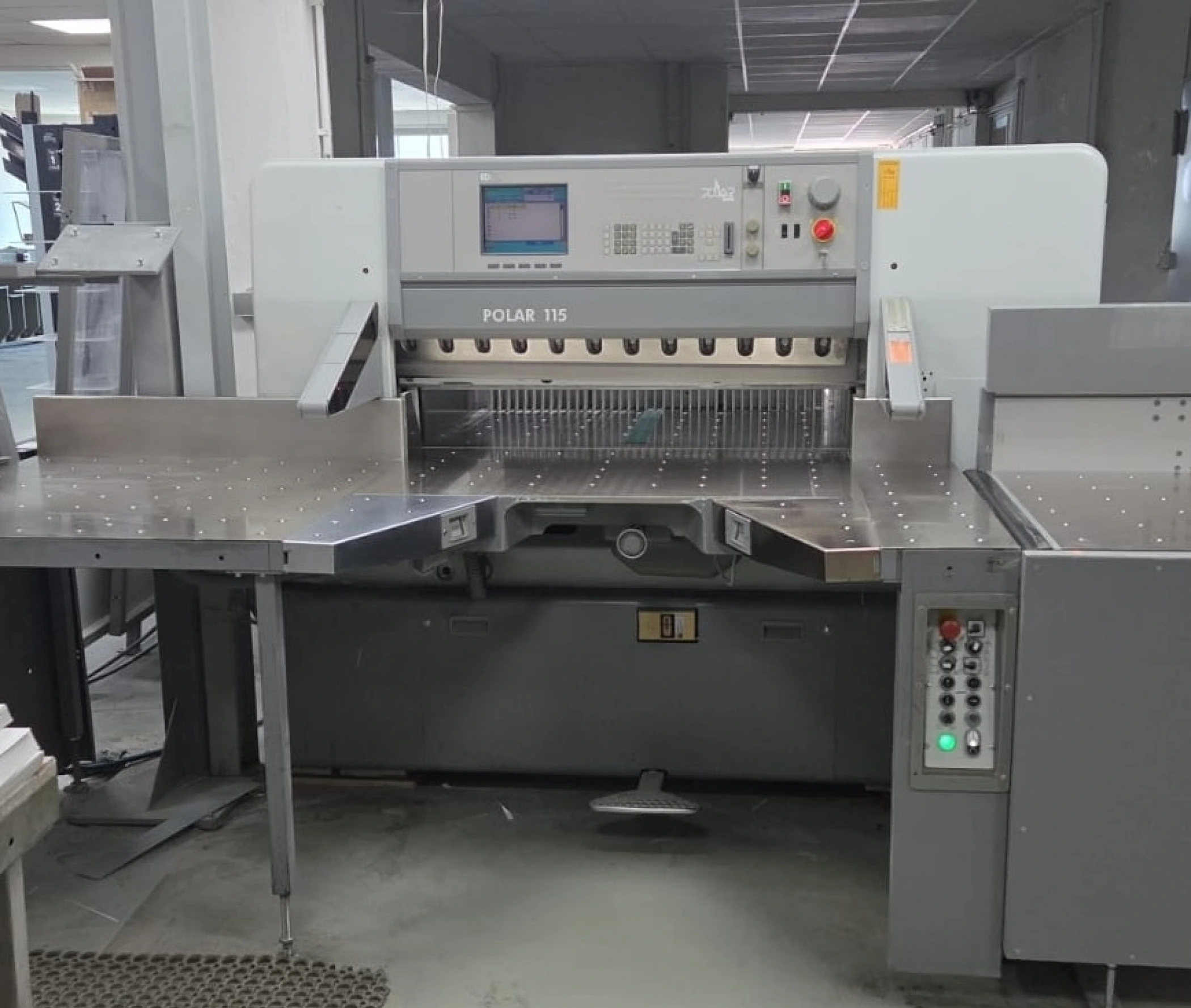

POLAR 115 ED
Type: Programmable guillotine paper cutting machine


Technical Specifications:

  • Control System (ED)

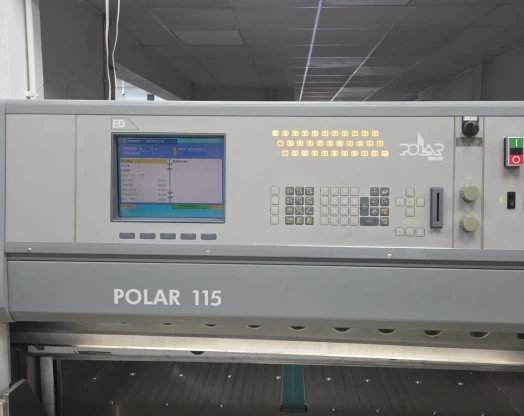

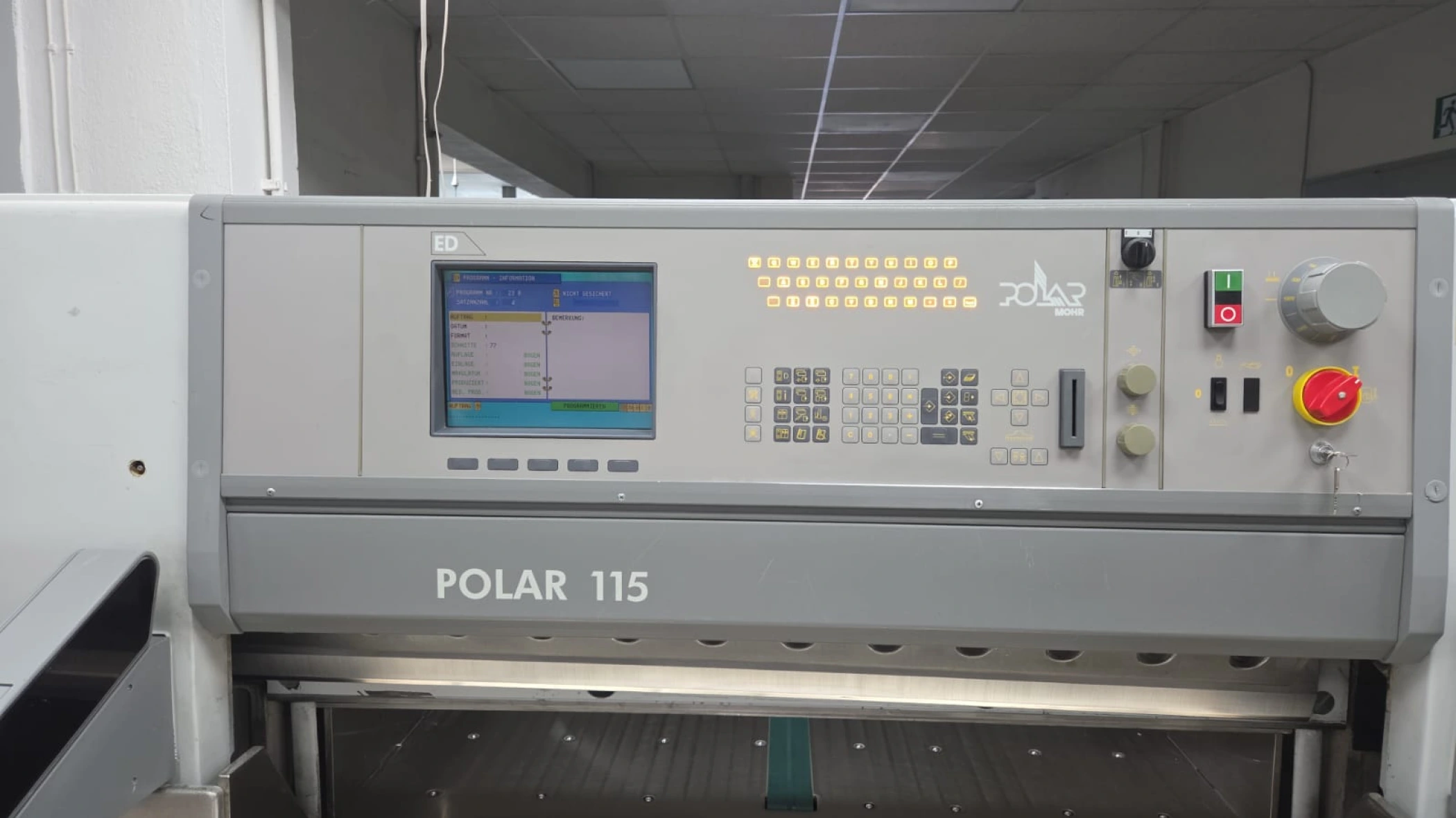

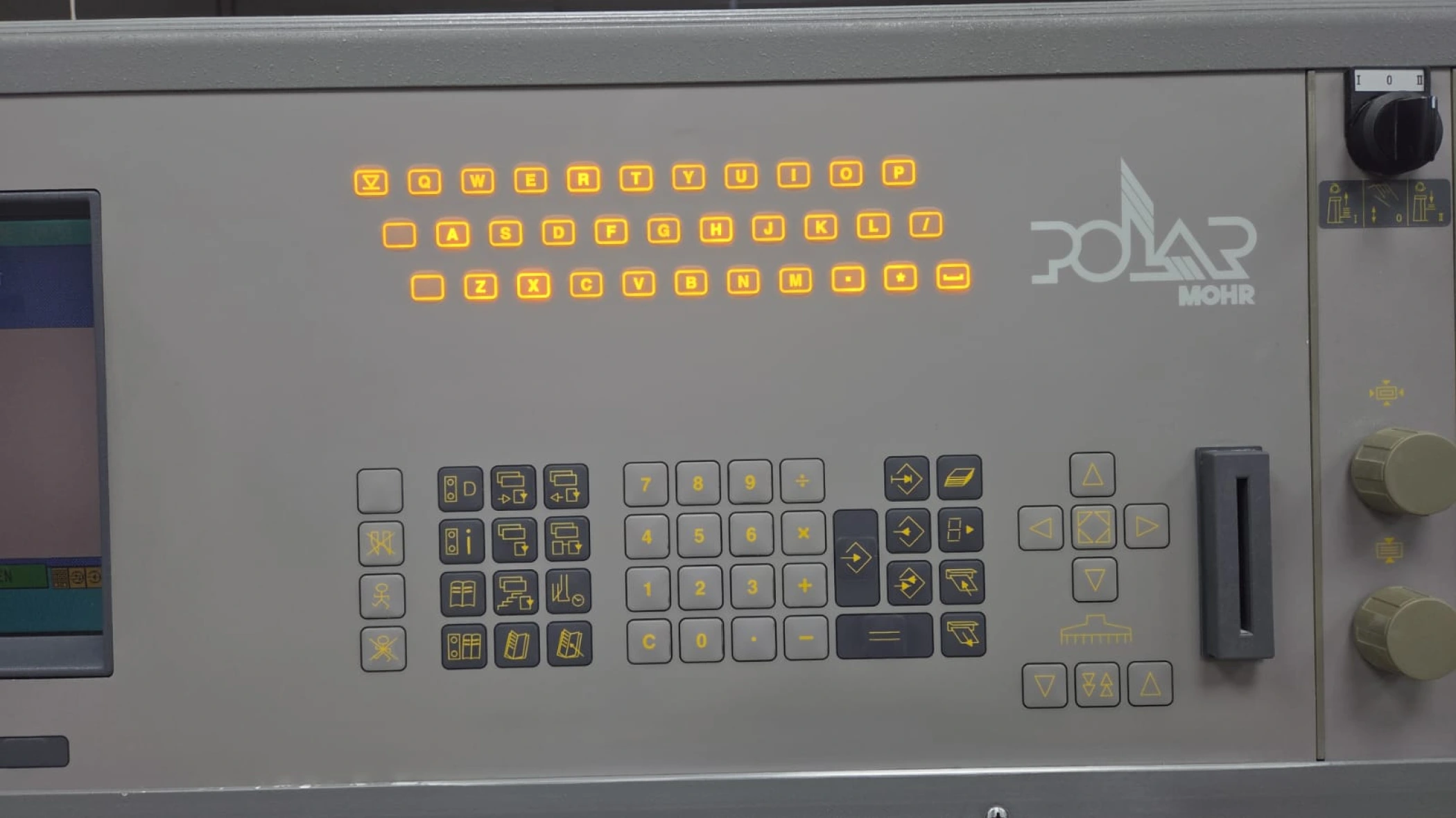

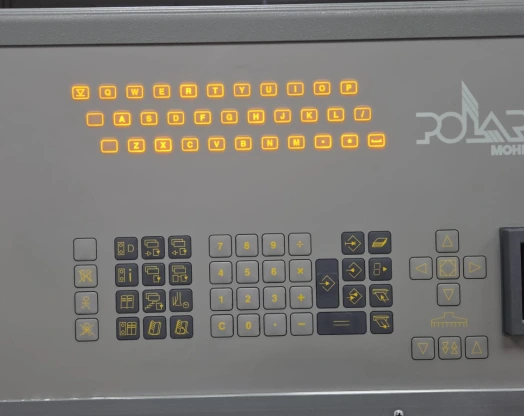

  • Control type: POLAR ED computer control

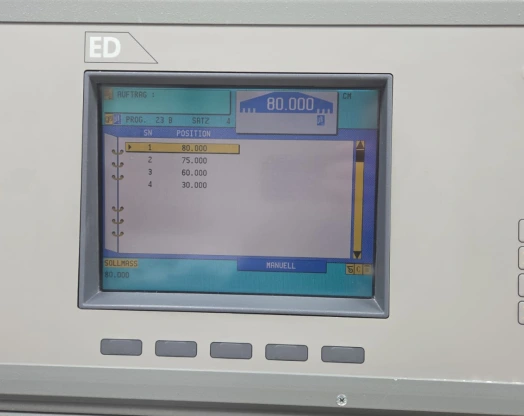

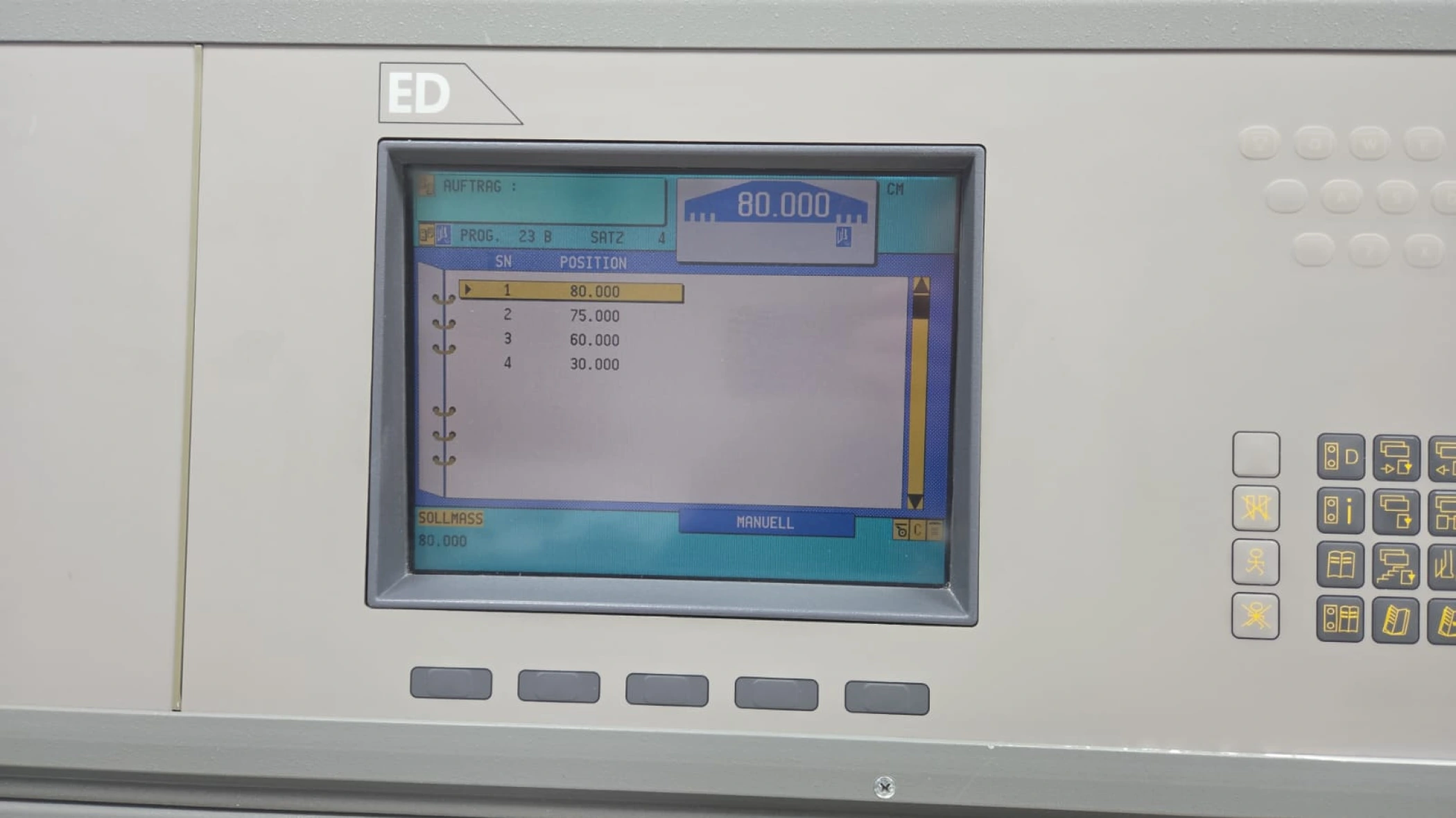

  • Display: TFT color screen with graphical interface
  • Cutting width: 115 cm (45 inches)
  • Max. sheet size: 115 × 115 cm
  • Max. cutting height: approx. 165 mm
  • Clamp: Hydraulic, adjustable pressure
  • Main table: Air table (air flotation system)
  • Side tables: enlarged and Air-assisted (left and right)


Functions:

  • Programmable cutting sequences (job memory)
  • Visual cutting program preview
  • Automatic backgauge positioning
  • Compatibility with workflow systems (e.g., Compucut)

Features & Equipment:

  • Programmable backgauge system
  • Automatic positioning for repeat jobs
  • Air flotation system (P1) for easy material handling
  • High-precision cutting for print finishing
  • Can be integrated into a full cutting line (stack lift, jogger, unloading system)

Safety Features:
  • Infrared light barrier (photoelectric safety system)
  • Two-hand operation for cutting release

Dimensions & Weight:
  • Dimensions (L × W × H): approx. 2330 × 2330 × 2540 mm
  • Weight: approx. 3200 kg

Applications:
• Cutting paper, cardboard, and printed materials
• Suitable for medium and large print formats (B1)
• Used in:
  - Commercial printing houses
  - Packaging production
  - Finishing departments
